?Mi-Wave波導到同軸適配器

發布時間：2022-11-01 16:43:40 瀏覽：914

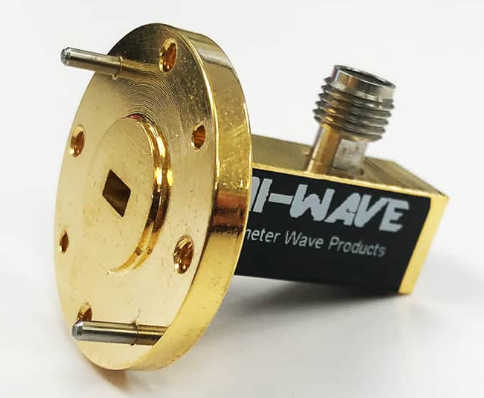

Mi-Wave的410系列波導到同軸適配器能夠有效的從矩形波導適用同軸連接器。全波導帶寬從8.2到110GHz。低插入損耗和駐波比是這個波導同軸適配器典型的特性。低成本的生產版本能夠讓設備和整車廠應用。實驗室級別也可以為其他型號。Mi-Wave的同軸到波導適配器滿足通訊設備的需求，是目前市面上適用的最好的波導轉換適配器之一。

特征

提供低成本版本

頻率范圍 8.2 至 110 GHz

提供多種同軸連接器

實驗室使用的高性能版本。

Mi-Wave是商用型和軍工用毫米波產品全球領航者，可以提供毫米波器件和模塊解決方案。產品線涵蓋：放大器、混頻器、衰減器、濾波器、開關、T/R、天線、反射鏡等，所包含頻率高達320GHz.

深圳市立維創展科技有限公司授權代理銷售Mi-Wave毫米波產品，歡迎咨詢。

詳情了解Mi-Wave請點擊：http://m.nfda.cn/brand/52.html

Model	Band	Frequency (GHz)	Insertion Loss (dB)	Return Loss (dB)	Power Handling (W)	Waveguide Port	Coaxial Port
410X/39/NF	X-Band	8.2-12.4	0.4	16	400	WR-90 Waveguide, UG-39/U Flange	NF- Female connector
410X/39/SMAF	X-Band	8.2-12.4	0.4	17	150	WR-90 Waveguide, UG-39/U Flange	SMA- Female connector
410X/39/SMAM	X-Band	8.2-12.4	0.4	16	150	WR-90 Waveguide, UG-39/U Flange	SMA-Male connector
410(51)/UBR180/CKF	WR-51	15-12	0.3	20	10	WR-51 Waveguide, UBR180 Flange w "O" Ring	CK-Female connector
410(34)/596/KF	WR-34	22-33	0.4	20	10	WR-34 Waveguide, UG-596 Flange w "O" Ring	K-Female connector
410(34)/595/KF	WR-34	22-33	0.4	17	10	WR-34 Waveguide, UG-596 Flange w "O" Ring	K-Female connector
410(34)/595/3.5mmF	WR-35	22-33	0.4	20	10	WR-34 Waveguide, UG-596 Flange w "O" Ring	3.5 mm Female Connector
410(75)/SMAF	WR-75	10-15	0.3	20	150	WR-75 Waveguide	SMA Female
410Ku/419/SMAF	Ku-Band	12.4-18	0.3	20	150	WR-62 Waveguide, UG-419 Flange	SMA Female
410K/595/SMAF	K-Band	18-26.5	0.4	20	150	WR-42 Waveguide with UG-595/U Flange	SMA-Female
410K/595/KF	K-Band	18-26.5	0.4	20	10	WR-42 Waveguide, UG-595/U Flange	K-Female connector
410A/599/KF	Ka-Band	26.5-40	0.4	20	10	WR-28 Waveguide, UG-599/U Flange	K-Female connector
410A/599/KM	Ka-Band	26.5-40	0.4	20	10	WR-28 Waveguide, UG-599/U Flange	K-Male connector
410B/383/KF	Q-Band	33-40	0.5	20	10	WR-22 Waveguide with UG-383/U Flange	K-Female connector
410B/383/KM	Q-Band	33-40	0.4	20	10	WR-22 Waveguide with UG-383/U Flange	2.92mm (K) Male connector
410B/383/2.4mmF	Q-Band	33-50	0.4	20	10	WR-22 Waveguide, UG-383/U Flange	2.4 mm Female Connector
410B/383/2.4mmM	Q-Band	33-50	0.4	20	10	WR-22 Waveguide, UG-383/U Flange	2.4 mm Male Connector
410U/383/1.85mmF	U-Band	40-60	0.5	17	10	WR-19 Waveguide with UG-383/U-M Flange	1.85 mm Female connector
410U/383/1.85mmM	U-Band	40-60	0.5	17	10	WR-19 Waveguide with UG-383/U-M Flange	1.85 mm Male Connector
410V/385/1.85mmF	V-Band	50-67	0.5	17	10	WR-15 Waveguide With UG-385/U Flange	1.85 mm Female connector
410V/385/1.85mmM	V-Band	50-67	0.5	17	10	WR-15 Waveguide with UG-385/U Flange	1.85 mm Male connector
410V/385/1.85mmF	V-Band	50-67	0.5	17	10	WR-15 Waveguide with UG-385/U Flange	1.85 mm Female connector
410V/385/1.00mmF	V-Band	50-67	0.5	15	10	WR-15 Waveguide with UG-385/U Flange	1.00 mm Female connector
410E/387/1.00mmM	E-Band	60-90	1	15	10	WR-12 Waveguide, UG-387/U Flange	1.85 mm Male connector
410E/387/1.00mmF	E-Band	60-90	1	15	10	WR-12 Waveguide, UG-387/U Flange	1.00 mm Female connector
410W/387/1.00mmM	W-Band	75-110	1.2	15	10	WR-10 Waveguide, UG-387/U-M Flange	1.00 mm Male connector
410W/387/1.00mmF	W-Band	75-110	1.2	15	10	WR-10 Waveguide, UG-387/U-M Flange	1.00 mm Female connector
