CINCON DIP / SMD轉換器3-75W

發布時間：2022-11-22 16:54:15 瀏覽：935

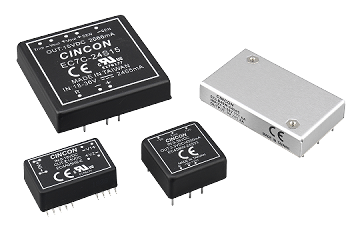

CINCON具備多種DIP DC-DC轉換器包，如3W到15W的DIP24或SMD24包，10W到30W的1個“x1”包，10W到75W的2個“x1”包，15W到40W的2個“x1.6”和2個“x2”包。CINCON具有超出29年的科研開發經驗，致力于鐵路交通、工業生產、it、5G電信、醫療和家庭等應用領域。

針對工業領域，所有的DIP DC-DC轉換器都可以用在工業生產使用。

針對鐵路交通領域，有滿足EN50155的DIP轉換器，如DIP248W和10W,2“x1”在20W和40W的封裝中。此外，CINCON還提供2個“x1”，20W,18:1超寬輸入范圍DC-DC轉換器，以包含數據系統更多的分布式系統電流電壓。

深圳市立維創展科技是CINCON電源模塊的代理經銷商，提供CINCON電源模塊的DC-DC轉換器、AC-DC電源、LED電源等，產品原裝進口，質量保障，極具價格優勢，歡迎咨詢

詳情了解CINCON電源請點擊：http://m.nfda.cn/article/2177.html

18:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
EC7BW18	20W	8.5~160V	12V, 15V, 5V, ±12V, ±15V, ±24V	3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
EC3AW	3W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC4AW	6W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC6AW	8W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN50155 Compliant	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC2SBW	10W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
EC4BW	10W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC7AW	10W	18~74V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	3KVdc Isolation EN55032 Class A	1.25x0.80x0.40(DIP24)
EC6AW-110	10W	43~160V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	1.25x0.80x0.50(DIP24)
EC8AW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation EN55032 Class A	1.25x0.80x0.40(DIP24)
EC3SBW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
EC5BW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)
EC5C	15W	18~72V, 9~36V	12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)
EC1SC	20W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	EN55022 Class A	2.00×1.60×0.45(DIP)
EC4SBW	20W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
EC7BW-110	20W	43~160V	5V, 12V, 15V, ±12V, ±15V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
EC7BW	20W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
EC3SCW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V	1.5KVdc Isolation EN60950-1	2.00×1.60×0.40(DIP)
EC5SBW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation UL62368-1	1.00x1.00x0.40(DIP)
EC9BW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)
ECLB40W	40W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
ECLB40W-110	40W	43~160V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.05x1.20x0.40(DIP)
ECLB60W	60W	18~75V, 9~36V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
ECLB75W	75W	18~75V, 9~36V	5V, 12V, 15V, ±12V, ±15V, ±24V	2.25KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
