2100-2200 MHz Directional Coupler
The Q20HK-2150R is a bi-directional coupler with high directivity and high power handling. Q20HK-2150R is a replacement for Soshin P/N GSC321-20M2150. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…
Specifications

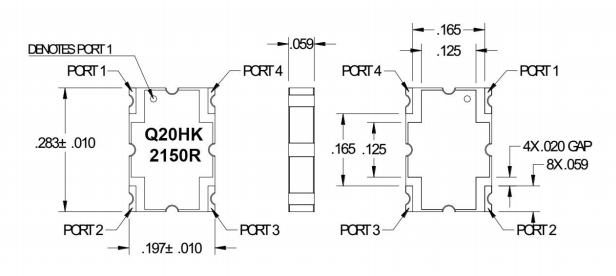

Size: 0.283 x 0.197 inches
Frequency: 2.1 – 2.2 GHz
Coupling: 20.5 dB ± 0.5 dB
Directivity: 30 dB
VSWR: 1.15:1
Insertion Loss: 0.3 dB
Power: 80 W
Evaluation board 722-0006-07-E01
