?RF-LAMBDA同軸適配器

發布時間：2024-02-26 17:13:53 瀏覽：1113

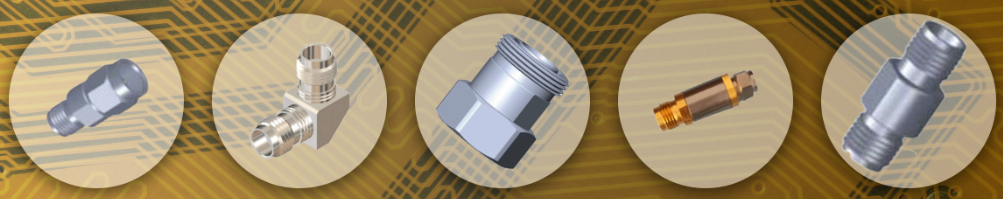

同軸適配器是款簡易的射頻同軸連接器，具備公共性內部同軸電纜和特殊的同軸連接器類型或公母適配器。

RF-LAMBDA同軸適配器適用于選擇不同的連接器選擇連接RF信號。RF-LAMBDA的產品線包含串聯和串聯，并且有各種各樣不同材質的和連接器選擇。

RF-LAMBDA是全球領先的射頻微波與毫米波器件制造商，RF-LAMBDA產品線均依據美國軍用標準設計與生產，已經廣泛應用于航天、航空、軍用裝備、衛星通信、雷達等高端項目。深圳市立維創展科技有限公司授權銷售RF-LAMBDA產品線，以全面的產品線和現貨銷售的優勢，為全球客戶提供可靠服務，歡迎咨詢。

Part Number	Description	From Connector	From Gender	To Connector	To Gender	Frequency Range	VSWR
RFCA01F01F	Intra Series Adapter	1.0mm	Female	1.0mm	Female	DC~110.00 GHz	1.50
RFCA01F01M	Intra Series Adapter	1.0mm	Female	1.0mm	Male	DC~110.00 GHz	1.50
RFCA01FVF	Inter Series Adapter	1.0mm	Female	2.4mm	Female	DC~50.00 GHz	1.22
RFCA01FVM	Inter Series Adapter	1.0mm	Female	2.4mm	Male	DC~50.00 GHz	1.22
RFCA01FWF	Inter Series Adapter	1.0mm	Female	1.85mm	Female	DC~67.00 GHz	1.29
RFCA01FWM	Inter Series Adapter	1.0mm	Female	1.85mm	Male	DC~67.00 GHz	1.29
RFCA01M01M	Intra Series Adapter	1.0mm	Male	1.0mm	Male	DC~110.00 GHz	1.50
RFCA01MVF	Inter Series Adapter	1.0mm	Male	2.4mm	Female	DC~50.00 GHz	1.22
RFCA01MVM	Inter Series Adapter	1.0mm	Male	2.4mm	Male	DC~50.00 GHz	1.22
RFCA01MWF	Inter Series Adapter	1.0mm	Male	1.85mm	Female	DC~67.00 GHz	1.29
RFCA01MWM	Inter Series Adapter	1.0mm	Male	1.85mm	Male	DC~67.00 GHz	1.29
RFCAERAFNF	Inter Series Adapter	N	Female	APC-7	Female	DC~18.00 GHz	1.10
RFCAERAFNM	Inter Series Adapter	N	Male	APC-7	Female	DC~18.00 GHz	1.10
RFCAERAFZF	Inter Series Adapter	3.5mm	Female	APC-7	Female	DC~18.00 GHz	1.10
RFCAERAFZM	Inter Series Adapter	3.5mm	Male	APC-7	Female	DC~18.00 GHz	1.10
RFCAERBFPF	SMP Serial Adapter	2.40mm	Female	SMP	Female	DC~40.00 GHz	1.20
RFCAERBFPMF	SMP Serial Adapter	2.40mm	Female	SMP	Male	DC~40.00 GHz	1.20
RFCAERBFPML	SMP Serial Adapter	2.40mm	Female	SMP	Male	DC~40.00 GHz	1.20
RFCAERBFPMS	SMP Serial Adapter	2.40mm	Female	SMP	Male	DC~40.00 GHz	1.20
RFCAERBMPF	SMP Serial Adapter	2.40mm	Male	SMP	Female	DC~40.00 GHz	1.20
RFCAERBMPMF	SMP Serial Adapter	2.40mm	Male	SMP	Male	DC~40.00 GHz	1.20
RFCAERBMPML	SMP Serial Adapter	2.40mm	Male	SMP	Male	DC~40.00 GHz	1.20
RFCAERBMPMS	SMP Serial Adapter	2.40mm	Male	SMP	Male	DC~40.00 GHz	1.20
RFCAERCBFRF	Right Angel Adapter	2.92mm	Female	2.40mm	Female	DC~40.00 GHz	1.25
RFCAERCBFRM	Right Angel Adapter	2.92mm	Female	2.40mm	Male	DC~40.00 GHz	1.25
